BESCHREIBUNG:

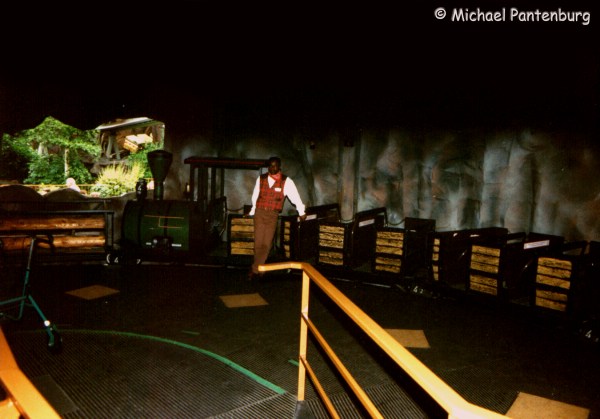

Bei dieser als Silbermine thematisierten Attraktion kam das "Endlos-Transport-System" zum Einsatz. Eine endlose Kolonne, bestehend aus 10 Zügen zu jeweils einer Lokomotive und 7 Wagen, bewegt sich fortlaufend mit 0,6 m/s über die insgesamt circa 340 Meter lange Strecke. Passagiere gelangen über einen rotierenden Teller, welcher sich parallel zum Zug bewegt, in die Fahrzeuge. Damit ist ein müheloses und vor allem aber fortwährendes Be- und Entladen möglich. Selbiges Prinzip findet man auch bei "Raftrides" oder "Wildwasserbahnen".
Das hier verwendete Schienensystem ist dem einer Achterbahn ähnlich, hat jedoch eine weitaus größere Spurweite. Die Radkonstruktionen beinhalten obere Lauf- sowie seitliche Führungsrollen. Die "Silbermine" sollte ursprünglich früher eröffnen, jedoch gab es Komplikationen bei der Fertigstellung (unter Anderem bedingt durch den unglücklichen Konkurs der Firma Schwarzkopf). 1984 war es dann endlich soweit. Von dort an konnten bis zu 2700 Personen in der Stunde befördert werden, wobei die Strecke dabei in 9,5 Minuten zurückgelegt wird.

Die Fotos der "Silbermine" entstanden 1993 im "Phantasialand" in Brühl,  Deutschland.

Hauptmenü
Hauptmenü
SPECIFICATION:

Themed as silvermine, this attraction is using Schwarzkopfs "endless-transportation-system". An endless assembly, consisting of 10 mine-trains (each consisting of a locomotive and 7 wagons), is travelling permanentely trough the 1115 feet long path at an speed of 0.375 mph. Passengers board the vehicles via a revolving turntable to ensure a nonstop loading and unloading while the whole train is in motion. A principle that can be found on "raft-rides" and "water-flumes", too.

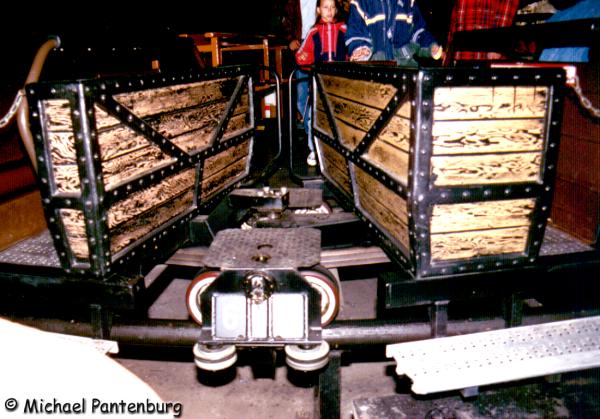

The herein used track system basically is similar to that of a rollercoaster, but having a much bigger gauge. Two point wheel-assemblies, featuring runwheels on top and guidewheels on the outer side, secure the train to the track. "Silver Mine" was sheduled to open up earlier, but due to several problems (including bankruptcy of the Schwarzkopf company) it opened up in 1984. Since then it carries up to 2700 people per hour, whereas it takes them 9.5 minutes to complete a round.

Photos of "Silbermine", which means "Silvermine" in english, were taken in 1993 at "Phantasialand" in Brühl, Germany.
